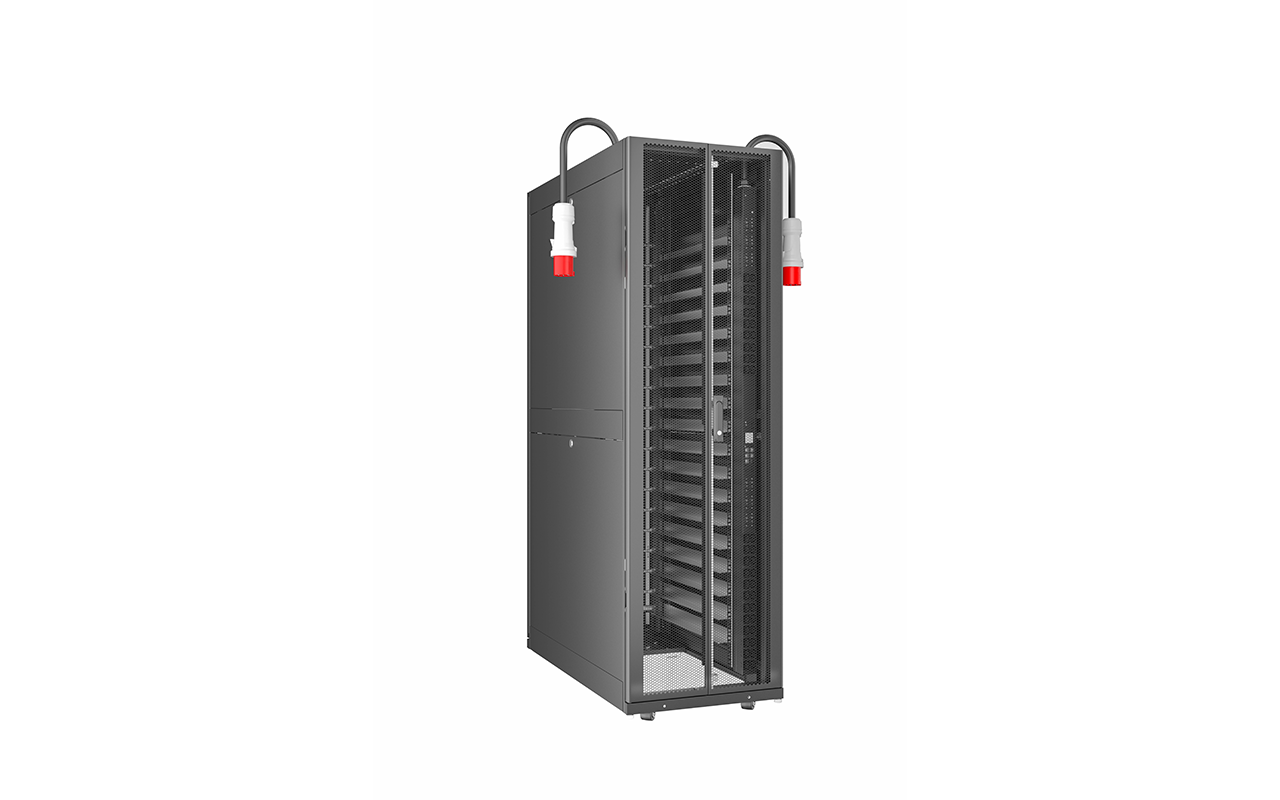

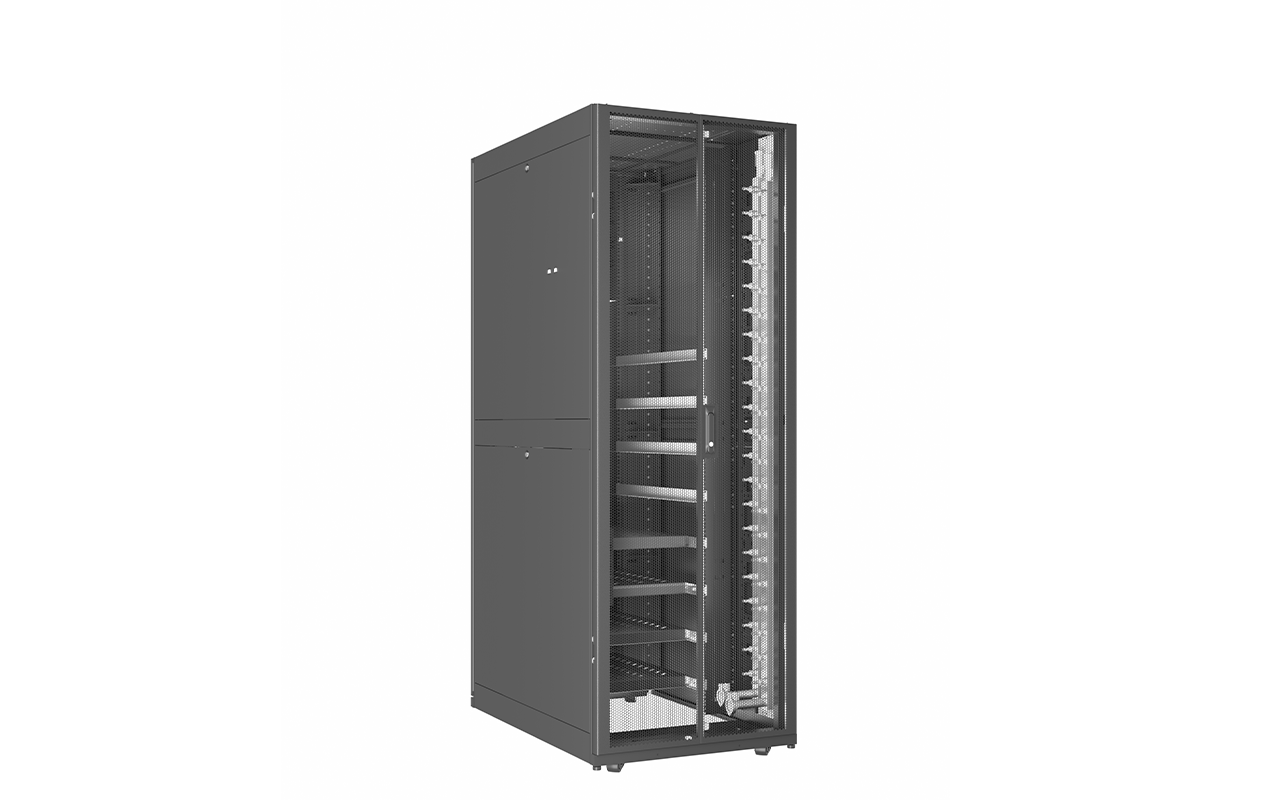

Liquid Cooling Server Rack

Liquid Cooling Server Rack
Equipped with intelligent PDUs, manifolds and rack-mounted CDU, a liquid cooling server rack can support rack power density up to 120kW.
PRODUCT DESCRIPTION

Rack:      Optimized for easy installation and support high-density server   deployment.

CDU:      Ensures that the coolant circulates through the system,  removing heat generated by the servers.

Manifold:      It allows the coolant to be evenly distributed among the servers while simplifying the layout and maintenance of the piping.

Intelligent PDU:    Not only provides electricity but also can  monitor power consumption, optimize energy efficiency and manage loads  when  necessary.


PRODUCT SPECIFICATIONS
  • Capacity: 120kW

  • Dimensions: 48U, 2258H*800W*1200D (Optional: 1400D)

  • PDU Input Rating: 3P 96A, 346~415V, 4pcs

  • Manifold: 50mm*50mm, Stainless Steel 304

  • Air Purge Valve:  Stainless Steel 304

  • Tri-Clamp: 1-1/4”

  • Num. of Branches: 21

  • Quick Disconnectors: UQD06
